Heavy Series Over Braided Flexible Metal Conduit ( SM70001 )

Delikon STEEL MILL automation cable protection EMI RFI Shielding Heavy Series Over Braided Flexible Metal Conduit, High Temperature heavy series FLEXIBLE SHEATH, Shield Termination High Temperature Heavy Series Connector

MADE FROM TYPE YF-703 FLEXIBLE STEEL CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provide more abrasion resistant and EMI/RFI shielding (EMC screening).
*Durable and long life.
*Inner core made from galvanized steel strip.
*Low fire hazard
*Resists hot metal splashes and high temperature
*Overbraided conduits are particularly suitable for installation in vibration environments.
Applications:
Most suitable for use in industrial environments and high temperatures, such as wiring welding machines and metal casting machines; Also for demanding industrial environments where higher abrasion resistance or EMI screening are required.

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit with Heavy Series Swivel Connector

Related Products:
Flexible conduits with PVC covering and over-braiding.
>>> Model YF-704
Waterproof heavy series over Braided Flexible metal Conduit

>>> Model AT-SL-BRAIDED
Over Braided Small BORE Flexible Stainless Steel Conduit

For automobile & industry control wiring harness

>>> Model PBF
Braided
Nylon Conduit
system

EMC screen braided flexible conduit for control panel
Delikon has introduced a range of braided nylon corrugated conduit and metal fittings with EMC screening capacity.

Stainless Steel SMALL BORE
Fiber Optics Flexible Conduit
Small Bore Stainless Steel flexible conduit protects sensor and themal coupler wirings

Smooth PVC coated liquid-tight flexible steel conduit
Delikon Liquid Tight Conduit Liquid Tight connector for Port Equipment

Over-braided flexible conduit system with connectors

Over braided interlocked Liquid tight metal Conduit and swivel fittings for CNC machine cable protection

Model: YF-701
For demanding industry cable protection

Delikon EMI shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector for steel mill, oil and gas petroleum industry, automotive industry automation cable protection

TRIPLE layers stainless steel wires Braided Flexible Stainless Steel Conduit for burning equipment power and data cable protection
Model: SC
For igniters, flame detector, BMS sensor cable

Delikon Triple Braided Stainless Steel Flexible Conduit System is designed for high temperature applications with a high level of thermal resistance, protecting the power and data cables of combustion equipment.

DELIKON STAINLESS STEEL LIQUID TIGHT CONNECTOR, STAINLESS STEEL LIQUID TIGHT CONDUIT SYSTEM
COMPLETE Stainless Steel liquid tight connector,Liquid Tight Stainless Steel conduit System for Oil, Chemical, Water, Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries

Delikon stainless steel liquid tight conduit system for wastewater treatment plant cable protection

Delikon Over Braided Flexible Conduit and Metal Conduit Fittings designed with reliability as the top objective are the best to protect the cables of milling machine, boring mills, CNC machining center, or a machine tool.
EV and farming equipment wiring harness
Delikon Flexible conduit and Fittings for Automotive Wiring Harness safeguard new energy automotive wiring.
FLEXIBLE OVER BRAIDING CONDUIT SYSTEMS
Over Braided Flexible Metal Conduit protecting power and data cables and air & fluid lines in harsh industrial invironment

Heavy Series Over Braided Flexible Metal Conduit and Conduit Fittings protect iron mill cable.

All METAL flexible conduit and ALL METAL connector for Plenum cable protection

Over braided flexible conduit provide excellent flexibility and good mechanical resistance together with good screening against electro-magnetic interference, most suitable for industrial applications where a high level of thermal resistance is required. It resists abrasion or hot metal splashes. Delikon All METAL flexible conduit and ALL METAL connector is also used for Plenum cable protection.

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and 360 Degrees Shield Termination Heavy Series High Temperature Connector protect heavy plate mill electrics, Smart Device and automation cables. The rapid evolution of technology in industrial automation systems requires tighter integration between devices on the plant floor and the rest of the enterprise. This integration requires a secure network infrastructure, Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and Shielding Termination Heavy Series High Temperature Connector protect wire and cable from signal distortion caused by nearby equipment and devices.

Braided flexible steel conduit,all metal construction

Heavy Series Over Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This heavy Series EMI Shielding over braided flexible conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference. Heavy Series Over Braided Flexible Metal Conduit resists hot metal splashes and is most suitable for steel industry electrical cable protection.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings offer reliable protection for automotive industry automation cables, spot welding line cables, motion control cables, sensor cables and inspection equipment cables. Delikon interference shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min Bending Radius (mm)	Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Min Bending Radius (mm)	Meter/Coil
SM-7000100	5mm	4.8	5.3	7.8	8.3	30	100
SM-7000101	-	7.5	8.3	10.8	11.6	35	100
SM-7000102	1/4"	9.7	10.2	14.5	15.0	40	100
SM-7000103	3/8"	12.3	12.8	16.6	16.8	50	50
SM-7000104	1/2"	15.8	16.2	22.5	22.9	65	50
SM-7000106	3/4"	20.8	21.3	28.4	29.1	75	50
SM-7000110	1"	26.4	27.2	32.6	33.4	100	50
SM-7000112	1-1/4"	35.0	35.9	41.0	41.5	125	30
SM-7000114	1-1/2"	40.1	40.6	46.8	47.3	150	30
SM-7000120	2"	50.5	51.2	58.3	59.0	175	20
SM-7000124	2-1/2"	62.9	63.9	73.1	74.1	200	10
SM-7000130	3"	77.0	78.0	88.0	89.0	225	10
SM-7000140	4"	99.6	101.6	109.7	111.5	275	10
SM-7000150	5"	125.0	127.0	137.0	139.0	350	5
SM-7000160	6"	150.0	153.0	162.0	164.5	480	5

Heavy Series Over Braided Flexible Conduit for CNC EDM Machine Data and Power Cable

Flexible metallic conduit, stainless steel wire braiding

FLEXIBLE STEEL CONDUIT WITH STAINLESS STEEL OVER BRAIDING, This conduit utilises strip wound steel conduit as a core, which is then over-braided with stainless steel wire. The wire over braid provides abrasion resistance and protects the core from mechanical damage. Over Braided Flexible Conduits provide high mechanical strength yet offer high flexibility. The conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. It will provide an enhanced level of EMI screening and a wide operating temperature. This heavy series over braided flexible metal conduit is excellent in protecting cables against hot swarfs in steel industry.

Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.

Delikon flexible conduit and fittings provides solid and reliable connection solutions for automation and Industry 4.0
Thanks to their very high level of shock and vibration resistance, Delikon heavy series over braided flexible conduit and fittings ensure reliable operation of your cables even under the most challenging conditions, whether in the drives of assembly machines, production lines, machine tools, packaging machines, or industry and process automation.

Delikon Braided flexible Conduit with MS Plug fitting for automation cable

The fourth industrial revolution is developing into a permanent technical evolution. Delikon heavy series over braided flexible conduit and fittings are already here to protect the cabinets and system cabling. In both control cabinets and system cabling, the key factor in achieving high availability of your electronic system is secure and failsafe connection of all components. Therefore, you need Delikon as a reliable single-source partner who can deliver modern, efficient and well constructed flexible conduit system to protect your control cabinets and system cabling.

Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect floating liquefied natural gas FLNG facility and LNG facility automation and communication cables

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect FLNG and LNG facility automation and communication cables.

Delikon EMI Shilelding Over Braided Flexible Conduit and Fittings protect monitoring sensors cables, and protect automation and communication cables of Floating liquefied natural gas FLNG or LNG plants.

Floating liquefied natural gas FLNG or LNG plants present unique challenges to cable management. Delikon EMI Shilelding Over Braided Flexible Conduit and Fittings protect the cables of monitoring sensors that provide large amounts of real time data for remote operations, and protect automation and communication cables, ensuring very high integrity and a very low probability of failure of control equipment due to cable damage.

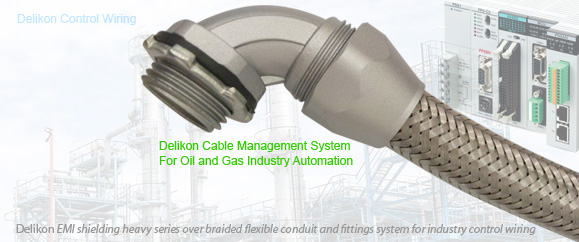

Delikon Automation and Control Cable Management System For Oil and Gas Control Systems. Delikon EMI shielding Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for industry control panels wirings, PLC wirings, Motion Control wiring, power and data cable protection.

Delikon Automation Cable Management System For Oil and Gas Control Systems. Delikon EMI shielding Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for industry control panels wirings, PLC wirings, Motion Control wiring, power and data cable protection.

In such a dynamic industry, oil and gas companies today are looking for ways to maximize production while minimizing equipment and automation control system maintenance down time and costs. Delikon heavy series over braided flexible conduit and fittings system offers protection as well as emi shielding for electrical and data cables of control system for the continuous production, processing, transportation and refining of oil and gas products. Poor wiring or connections will result in poor machine functionality and or damage. When evaluating the need for control wiring installation or upgrades, donot forget to choose Delikon Automation Cable Management System that can provide qualified protection and shielding, keeping the interference from signal noise to a minimum.

Delikon Flexible Conduit and Fittings For Offshore, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. And Delikon High Temperature Heavy Series Over Braided Flexible Conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globe

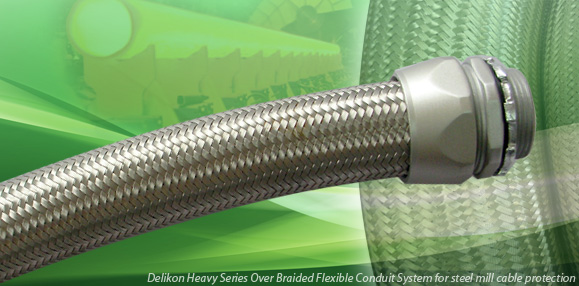

Heavy Series Over Braided Flexible Conduit and Conduit Fittings system specially designed for cables protections in steel mills, glass works and electric furnaces, resists hot metal splashes. Over braided flexible conduit also provides exceptional screening and shielding effectiveness from electromagnetic and radio frequency interference.

Emi shield over Braided Flexible Conduit for Variable frequency drive cable (VFD)

*All sizes and dimensions listed above are subject to manufacturing tolerances. Flexible Metal Conduit for Heavy Mechanical Stress
*Standard Packaging: PVC woven sheet wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. Also Refer To: Braided Liquid-Tight Conduit


Delikon Automation Heavy Series. Together, we are meeting the demands on modern machines and plants. Delikon Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector provide mechanical protection as well as emi and rif shielding to industry variable speed drive variable frequency drive VFD cables.

Delikon Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector help to protect and shield Semiconductors and Electronics Industry equipment and process tool automation, facility management control systems, material handling automation wires and cables, limiting signal interference between the wire and external fields. Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Connector also protect wires and cables from electrostatic discharges ESD building up. Delikon has been a leading supplier of mining and rock excavation equipment cable protection solutions. From underground coal mines to surface gold mines to the oil sands, Delikon heavy series over braided flexible conduit systems are designed to protect mining equipment, mining machines and rock excavation equipment and increase your productivity. Delikon offers the broadest line of Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector in the mining and infrastructure industries for protection and EMI RFI shielding of underground and surface mining equipment electrical and automation cables. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector provides protection and shielding solutions for Endless Continuous Casting and Rolling ESP plant process equipment and automation system cable, helping to minimize energy consumption in rolling, improve product consistency, and maximize yield. Delikon High Temperature Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector are able to handle constant exposure to high heat, abrasions, and environmental wear and tear. While Delikon Heavy Series Over Braided Liquid Tight Flexible Conduit provides an additional layer of protection from moisture.

Delikon Heavy Series Over Braided Flexible Conduit and Fittings Provides Perfect Cable Protection Solutions for the Steel Mill Industry Automation A host of sensors can be used to automate steel mills and improve overall productivity and product quality. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are here to provide additional mechanical protection, hot metal splash resistance, as well as EMI sheilding to Sensors and instrumentation Cables. New manufacturing plants and retrofits in the steel-making industry present growth opportunities for Delikon flexible conduit and fittings systems. Delikon has the right flexible conduit system to protect temperature and vibration sensors cables in hot rolling processes and other continuous casting, rolling, and final end product manufacturing, as well as flexible conduit and fittings for other types of sensors and analyzers. High Temperature Heavy Series Over Braided Flexible Conduit	Delikon Heavy Series Conduit Connector

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect motor control cables, VFD cable and automation cable Delikon, a leading global manufacturer of Heavy Series Over Braided Flexible Conduit systems for protection and shielding of electrical wires and cables for metal industry, we offer an extensive range of EMI RFI Shielding Heavy Series Over Braided Flexible Conduits and EMI RFI Shielding Termination Heavy Series Connectors used in all segments of metallurgy, from yard to melt shop, hot and cold rolling, and processing lines.

Delikon Over Braided Flexible Conduit Backshell for mil circular connectors, Connector Adapter, Environmental and EMI Backshell, Swivel Backshell Delikon MAS Series Braided Conduit Backshell is designed to fit mil spec circular electrical connectors. These adapters are compatible with Over Braided Flexible Conduit, Metal Liquid Tight conduit, Flexible Metal Conduit and Non Metallic Flexible Conduit. The metal clamping and grounding ferrule slips over conduit end. When the adapter nut is tightened, the ferrule compresses onto metal conduit core and jacket for grounding and environmental sealing. Delikon produces different designs of backshell for use with flexible conduits to meet every MIL-SPEC Connectors application need. Together with over braided flexible conduit, Delikon Backshell Flexible Conduit System provide shielding against electrostatic discharge ESD and or electromagnetic interference EMI.

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector protect ALUMINIUM and NON-FERROUS METALS Scrap processing, melting, casting, rolling, drawing, finishing, processing and extrusion plants automation cables. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and Connector can help minimize interference and cable failure risk to automation and process control applications, ensuring operational reliability in industries where negating unplanned cable maintenance is a priority.

Delikon heavy series connector features a conical ring which capture the braiding shield inside a tapered counterbore in the connector backshell body. The heavy series connector clamps tightly around the over braided flexible conduit braiding, providing 360 degrees shield screen termination. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and 360 Degrees EMI RFI Shield Termination Heavy Series Connector reduce EMI RFI interference, ensuring signal integrity and reliability in various applications like telecom, audio video, and industrial automation. Refineries need to operate 24/7 because of the continual business pressure on margins. So in a demanding environment, where safety is paramount, you can’t afford to have unplanned downtime caused by unnecessary maintenance or sudden failures of cables that leave energy consumption unchecked. So with countless electric motors, Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector are used to shield and protect motor and Variable Frequency Drive VFD cables in order to maintain high levels of uptime. Delikon Industry Automation Solutions

The harsh environment of steel mills demands tough cable conduit systems with reliable performance. Replacing cables costs time and money, and loss of data feedback or power puts product quality in jeopardy. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in modern steel mills. Delikon flexible conduit systems are available in many different constructions including PVC coated, thermal rubber coated, and over braided types.To provide additional protection in harsh environments, Heavy Series Over Braided Flexible Conduit is available that can withstand hot metal splash and provide emi shielding to the data and power cables. Delikon flexible conduit systems are easy to install.

Delikon VFD Cable EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector is ideal for harsh environment VFD applications where a longer lasting cable is desired or where cable flexibility during use or installation is critical. Designed specifically for variable frequency drives cable and to withstand the harsh environment of typical VFD systems.

The ideal wiring system for every automation task, Delikon EMI RFI ESD Shielding High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Motion Control Cables The demands on modern machines and plants are steadily growing in all industries. With Delikon heavy series over braided flexible conduit systems for automation wiring, you can cover all requirements while benefiting from maximum efficiency, flexibility, and cost effectiveness. The Heavy Series Over Braided Flexible Conduit with stainless steel wires over braiding all metal rugged designs withstand exposure to dirt, welding sparks, slag, high electromagnetic and radio frequency interference. Our High Temperature Heavy Series Over Braided Flexible Conduit system, built for industrial applications, can withstand mechanical load and high thermal stress while remaining highly reliable, as well as reducing EMI noise. Choosing Delikon EMI RFI ESD Shielding High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for high heat environments reduces unnecessary replacements and avoids downtime. Delikon has designed a specialized family of High Temperature Over Braided Flexible Metal Conduit and Heavy Series Connector that can take the heat. All of these high temperature flexible conduit systems can withstand applications in continuous heat, extreme heat or flash heat. Delikon Heavy Series Flexible Sheath with External Stainless Steel Braiding protects steelmaking and automotive industry automation and motion control cables against sparks and slag. Delikon High Temperature Heavy Series Stainless Steel Connector produced from solid stainless steel rods, offers the best combination of strength, oxidation resistance and elevated temperature properties for long service, high temperature industrial applications and has been successfully employed for such purposes even in the steel casting, foundry and forging industry. Delikon has been supplying Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Connector to automotive industry, Petrochemical industry and metal industry, shielding the automation cables from electrical interference EMI and RFI that could render equipments inoperable. Delikon heavy series flexible EMI shield is also configured to prevent ESD induced current from upsetting or damaging a device. Delikon High Temperature Heavy Series Connector has a tapered grounding ring mating to a tapered surface on the rear of the connector backshell, and the grounding ring will clamp tightly around the flexible conduit stainless steel braiding when the backshell nut is tightened Together with the connector ferrule, physically connecting the full circumference of the braided conduit shield to the enclosure, terminating shielding on the wiring systems and providing a low impedance continous EMC grounding.

Delikon high temperature heavy series stainless steel connector is one piece body, all stainless steel construction for reliable applications where high temperature oxidation resistance is necessary, and in other applications where high temperature strength is required. The all stainless steel heavy duty construction which is wet corrosion resistance is also highly beneficial to Delikon high temperature stainless steel connector strength and resistance to scaling at elevated temperatures. For a prolonged service life, Delikon heavy series stainless steel connector is usually chosen for applications with higher operating temperature. Delikon heavy series stainless steel connector and heavy series over braided flexible conduit are used extensively in protecting control or power cables of casting machine, heat exchanger, heaters, boiler, feed water heaters, valves and steam lines sensors and instrumentations.

Delikon interference shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector for steel mill, oil and gas industry, Refineries and Petrochemical industry, mining industry and automotive industry automation cable protection

Delikon interference shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector are designed for steel mill, oil and gas industry, Refineries and Petrochemical industry, automotive industry automation cable protection. Delikon interference shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector provide excellent protection against signal interference for automation PLC cable, PAC cable, VFD motor cable, variable frequency drive and control cable, Valve Control Cable, sensor and actuator cable, communication cable as well as motion control cable. Delikon Shielding Heavy Series Flexible Conduit and Shielding termination Heavy Series Connector are used to protect the data being transferred through the cable from degradation by EMI exposure, which is common in data centers, industrial settings, offices, and other settings where computer technology, electrical equipment, or electronic equipment is in heavy use. Delikon Shielding Heavy Series Flexible Conduit and Shielding termination Heavy Series Connector are most often found in industrial settings and installations where other nearby equipment is likely to generate electromagnetic interference EMI.

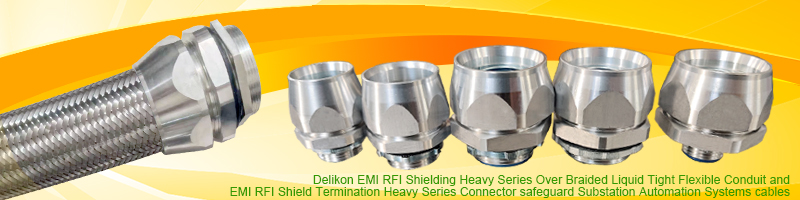

Delikon EMI RFI Shielding Heavy Series Over Braided Liquid Tight Flexible Metal Conduit and EMI RFI Shield Termination Heavy Series Connector safeguard Substation Automation Systems and Intelligent Electronic Devices IED cables

Transient magnetic fields associated with high frequency surge currents are both electrostatically and magnetically coupled to cables in the substations area, resulting in many equipment failures. Delikon EMI RFI Shielding Heavy Series Over Braided Liquid Tight Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector provide proper emi rfi shielding to control, current, and potential transformer circuits. The heavy series connectors connect the shield to the ground grid at both end. Substation equipment and all electrical devices cables are vulnerable to destructive industry occurrences like moisture, dust and mechanical impact. Delikon EMI RFI Shielding Heavy Series Over Braided Liquid Tight Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector are the best choice to protect the physical and functional integrity of such cables from mechanical damage, environmental hazards.

Designed specifically for the harsh environments found in steel rolling mill and aluminium rolling mills, Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings protect Hot metal IR detector, Optical Speed meter and Non-contact speed measurement instruments cables. The Heavy Series Over Braided Flexible Conduit and Heavy Series Connectors provide EMI shielding as well as mechanical armouring for steel mill automation cables and VFD cable.

Delikon 360 degrees EMI RFI shield termination Heavy Series Connector and EMI RFI Shielding Heavy Series Over Braided Flexible Conduit provide outstanding protection and emi rfi shielding solution for wire and cable of steel long products and flat products Direct Rolling Digital Plants automation and process control equipments. Delikon High Temperature EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and High Temperature EMI RFI Shield Termination Heavy Series Connector are designed to handle constant exposure to high heat, abrasions, and environmental wear and tear. Providing the highest quality and safety in all cable protection area for modernization, retrofitting and revamping of automation control systems of caster and rolling mill, Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector are your best choice to safeguard cables from mechanical damage, environmental hazards, and accidental interference as well as to combat the effects of EMI.

	Heavy Series Over Braided Flexible Metal Conduit ( SM70001 )	Braided Flexible Metal Conduit

	Over Braided Flexible Steel Conduit typically used for machinery cables and wirings protection. As part of the Braided system range, this braided flexible metal conduit has inherent fire protection, high pull off strength and offers EMI screening. Heavy Duty galvanized steel helically wound with unique Delikon Locking construction Secure and tight full outer coverage of High Tensile stainless steel wire over-braiding 3/8"~6" trade size EMI/RFI shielding For heavy mechanical stress High fatigue life Resists high temperature and hot metal splashes All metallic constructions
