SM-701 Over Braided
InterLocked Liquid Tight Conduit |

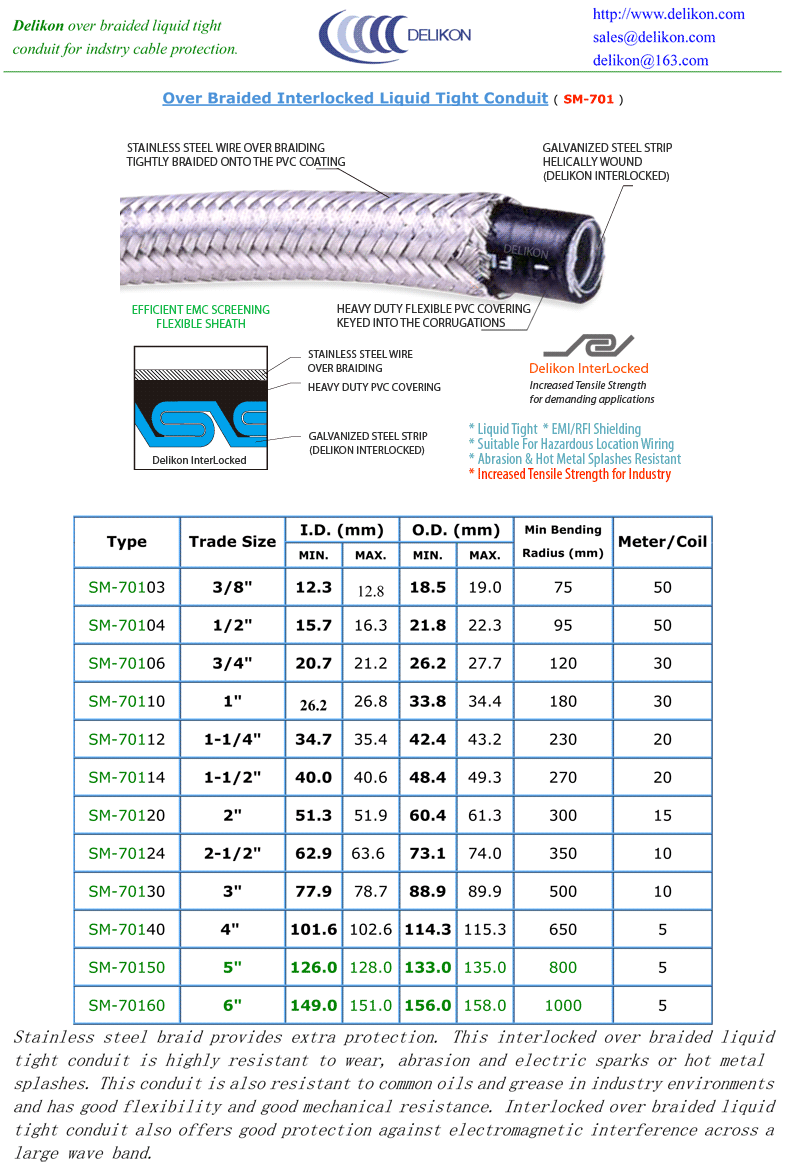

 Download the catalog page for DELIKON
SM-701 Over Braided
Liquid Tight Conduit in PDF
File format. |
|
 |
|
 |
 |
 |
Delikon heavy series over
braided flexible conduit and braided conduit fittings for
automation and process control applications
As the sophistication and complexity of automated systems
gathers pace, savings in labour energy and materials
increase together with proportionate gains in quality,
accuracy and precision. However, downtime becomes
increasingly disruptive, damaging and expensive. To help
minimise that risk, we offer an extensive range of
heavy series over braided flexible
conduit and braided conduit
fittings covering automation and process control
applications, ensuring operational reliability in industries
where negating unplanned maintenance is a priority.
From power distribution cables for production lines,
automated machinery and safety systems to data
communications cables responsible for the smooth running of
sensitive control equipment, we supply a complete range of
cable protection flexible conduit and fittings on which
critical operations rely. |
|
|
 |
 |
|
 Delikon,
experts in the manufacture of heavy series over braided
flexible conduit and fittings for industry automation power
and data cables protection. Our flexible conduit systems
offer reliable cable protection solutions for PLC, sensors,
machining centers, industry robots and other demanding industrial
applications. |
Reliable cable conduit for the
world's leading organisations
Delikon industry sectors heavy series over braided
flexible conduit and conduit fittings are recognised as one
of the best in the cable management industry and selected by
leading organisations when building their high-tech
production lines. The quality of our flexible conduit system
is vitally important in a selection process focusing on
safeguarding the operational continuity of automated
processes.
Our range of over braided flexible conduit and fittings
providing interference-free data and signal transmission is
as vast as the number of industries in which our flexible
conduits and fittings are used. These include the ALL METAL
over braided flexible metallic conduit and fittings, which
we supply to distinguished steel and iron mills, and which
they trust to protect the cables in their metal production
lines.
It also includes more specialised flexible conduit system
such as over braided liquid tight conduit used in areas
where our flexible conduit system must perform under
demanding conditions.
As a result of our strive for supplying quality products and
reliable services, we appear on the approved supplier list
of leading international engineering firms, and our heavy
series over braided flexible conduit and braided conduit
fittings are used in automation and process control
safety-critical applications ranging from controlling core
temperature in nuclear power stations to monitoring product
quality in chemical factories around the world. |
|
|
|
|
Liquid-tight Electric Flexible Conduit, Metal wire over-braided
Wire Over-Braided Flexible Conduit ( SM-701 )
most suitable for demanding industrial electric wiring and cables
protection
applications.
*Galvanized steel helically wound with PVC coating and wire over-braid.
*Trade size: 3/8"~2" (Interlocked profile for increased tensile
strength.)
*Liquid-tight *Explosion proof (Suitable for use in Hazardous Location)
*High Tensile strength
MADE FROM INTERLOCKED CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provides more abrasion resistant, EMI screening and
resistance to hot metal splashes.
*Explosion proof. Liquid-tight.
*Durable and long life.
*High tensile strength.
*Inner core made from galvanized steel strip.
*Square locked construction with packing for more tensile strength or
air tightness.
*Other packing materials: copper bonding (grounding) wire, PVC wire
packing is also available.
Applications:
Heavy Series Over braided
Interlocked metal liquid tight flexible conduit is suitable for use in
Hazardous Locations and Industrial environments where higher abrasion
resistance or
EMC screening are required. It is
especially suitable for protections of
machineries cables
and wiring in wet and hazardous locations and Tele-communications
equipments wirings. |
|
 |
 |
Over Braided Flexible Metal Conduit Resists hot metal
splashes & abrasion. |
|
Electrical Over Braided Flexible
Conduit for Industry Wirings |
Heavy Series Over Braided
Flexible Conduit |
|
HEAVY SERIE over Braided
Flexible metal Conduit conduit fittings for metal & chemical industry
equipment wirings |
|
 |
Over braided flexible
metallic conduit,Liquid Resistant,EMI shielding
Clean data transmission in a noisy environment is an ever increasing
requirement on todays crowded factory floors. Braided flexible steel
conduit systems provide excellent EMI and RFI shielding, as well as
mechanical protection, resulting in improved data transmission for
factory automations. |
|
Delikon Industry
Corrosion Resistant High Temperature Resistant Heavy Series Stainless
Steel Liquid tight Connector Heavy Series Stainless Steel Conduit
Fitting
Delikon Corrosion Resistant Heavy Series Stainless Steel Liquid Tight
Connector, Heavy Series Stainless Steel Conduit Fittings have proven
itself through many years of reliable service in Petrochemical industry,
processing and oil and gas industries, power plant, Food industry,
Automotive and aerospace industries, Hospitals, and Commercial
applications. |
 |
 |
|
Delikon EMI Shield Termination Heavy Series Over
Braided Conduit Connector, Heavy Series Fittings
In the industry Automation, we find a high concentration of electrical
wiring in a relatively small area. To combat the effects of EMI, Delikon
has designed a full range of heavy series over braided flexible conduit
and EMI Shield Termination connectors for wiring harnesses, cable
assemblies, and relay panels. The heavy series connector has a metal
ring which clamps the conduit outer metal braiding tightly, making the
whole flexible conduit assembly conducive to minimizing electromagnetic
interference
EMI. The ground point of the shielding conduit system is the backshell
of the heavy series connector which ultimately
connects to the electrical box or electrical enclosure.
The purpose of a Delikon Heavy Series Over Braided Flexible Conduit
system is to eliminate EMI that is caused by the electrical current in
the conductor of a wire. Likewise, a shielding flexible conduit system
limits EMI caused by other nearby wires assemblies. Delikon Flexible
Shields eliminate crosstalk between wires so you have a clear signal for
automation applications. |
|
|
|
Waterproof Heavy Series Over Braided Flexible
Metal Conduit Heavy Series Flexible Sheath Over Braided Flexible Conduit
Fittings and Connector protect cable from
hot metal swarfs, Heavy Series Over Braided
Conduit system for ship wiring |
 |
