EMI Shielding Over Braided Flexible Corrugated Nylon Conduit ( PBF )

Delikon EMI RFI Shielding Over Braided Corrugated Polyamide Flexible Conduit and Shield Termination Heavy Series Connector for Robotics, motion control and automation cable shielding and protection

MADE FROM TYPE PB NYLON CORRUGATED CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provide more abrasion resistant and EMI shielding.
*Light weight. Flexible and liquid tight.
*Durable and high fatigue life. Good mechanical and thermal performances
*Inner core made from corrugated Nylon tube for more flexibility.
*Highly resistant to solvents and oils

Applications:
Robotics, Automation, Appliances, automotive wire & cable sleeving, industrial equipments,
medical devices, machineries, industry wire conduits
Related Products:
Oil Resistant System
>>> Model WNS

>>> Model YF-704
BRAIDED Flexible metallic conduit, water proof, EMI shielding

>>> Model SM-70001
Flexible metal conduit for heavy mechanical stress

Water proof flexible metallic conduits
>>> Model YF-707
Vacuum jacketed steel flexible conduit (VJC)

Nylon flexible conduit and fittings system

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Conduit Fittings For mining machine wirings
To meet the demands of the Mining & Metal industry in general, Delikon offers an extensive range of specialist conduit solutions suitable for demanding wiring applications in these sectors. The range of products protects power and data cables in mining, iron, steel and other metal industries.

Flexible Conduit with Ms Adapter

Delikon Over Braided Flexible Conduit and Heavy Series Connector are designed to combat the effects of RFI EMI in cables.

Delikon pvc coated stainless steel liquid tight conduit and liquid tight stainless steel connector for water treament plant wiring, from 1/4 inch upto 6 inches

Delikon EMI RFI Shielding Over Braided Corrugated Polyamide Flexible Conduit and Shield Termination Heavy Series Connector are designed for Robotics, motion control and automation cable shielding and protection. Ideally suited for robotic equipment. This Over Braided Polyamide Flexible Conduit is intended for applications requiring flexible motion, such as power track or cable carrier installations. Delikon Over Braided Flexible Conduit and Fittings Protect Industry Robotics and Automation Cables.

Highly resistant to abrasion, oil, and solvents. Highly flexible and high fatigue life. Delikon over braided flexible polyamide conduit is suitable for most applications combining an high flexibilitywith good mechanical and thermal performances. Ideal for static and dynamic applications, Delikon over braided flexible conduit system is the most appropriate solution for industry automation energy or signal distribution. Motion Control cables shield

Type	Trade Size	I.D. (mm)		O.D. (mm)		Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Meter/Coil
PBF-00	5mm	4.7	4.8	8.0	8.2	100
PBF-01	1/4"	6.4	6.6	10.7	11.0	100
PBF-02	5/16"	9.7	10.0	13.7	14.0	100
PBF-03	3/8"	11.7	12.0	16.5	16.8	100
PBF-04	1/2"	16.5	16.7	21.8	22.2	100
PBF-06	3/4"	21.5	22.0	29.0	29.5	100
PBF-10	1"	27.7	28.2	34.5	35.0	50
PBF-12	1-1/4"	35.5	36.0	42.2	42.8	50
PBF-20	2"	46.4	47.0	54.8	55.5	50
PBF-24*	2-1/2"	61.0	63.0	76.0	78.0	10
PBF-30*	3"	74.0	77.0	89.0	92.0	10
PBF-40*	4"	92.0	96.0	110.0	114.0	5

Polyamide conduit system

Over braided flexible conduit for industry automation cable protection

Braided corrugated nylon conduit

Flexible Corrugated Nylon Conduit with Stainless Steel Overbraid, PBF conduit is manufactured from standard weight corrugated nylon conduit, which offers superior mechanical strength as well as high radiation and chemical protection often in high temperatures. The stainless steel overbraid provides a high level of EMI screening for data cables, abrasion resistance and protects the NYLON core from mechanical damage. The conduit, at full extension, offers high tensile strength without elongation.

Download the catalog page for DELIKON PBF Over Braided Polyamide Corrugated Flexible Conduit in PDF File format. Delikon over braided flexible conduit and fittings system is designed for environments with process residues, sharp shavings, burrs, chips or sparks.

Over Braided Corrugated Nylon Flexible Conduit & metal fittings (emc shielding polyamide corrugated flexible conduit) system is most suitable for industry control and robot cable protection.

*All sizes and dimensions listed above are subject to manufacturing tolerances. nylon flexible Conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. Braided Flexible Conduit systems for vehicle wiring harnesses

Delikon Heavy Series Over Braided Flexible Conduit and Fittings protect metal industry AUTOMATION Process control and power systems cables

One of our missions is to provide flexible cable conduit cable protection solutions for process automation and control systems for the metals industry, covering the wide spectrum of metal industry technology, ranging from refining iron ore to processing long and flat products. Furthermore, we design and supply complete Heavy Series Over Braided Flexible Conduit and Fittings systems, up to turnkey solutions for steel industry, with installation engineering based on extensive experience and on the required performance. Additionally, we produce flexible conduit and fittings for instruments and sensors, designed and engineered to meet the demands from steel producers for protecting sophisticated controls and automation cables.

Over Braided Flexible Steel Conduits for heavy industry

for more mechanical strength, increased EMI shielding

Delikon Heavy Series

Delikon Heavy Series Over Braided Flexible Conduit and Fittings for Automation Control cable protection solutions
Delikon Electric Flexible Conduit Systems for automation and control cable protection solutions cover the breadth of the industrial, infrastructure and building sectors cable management, from heavy series over braided liquid tight conduit to over braided corrugated nylon flexible conduit, high temperature heavy series over braided flexible metal conduit and heavy series connectors, for applications from simple machines to complex process systems wirings.
Product highlight Designed for the future, the Heavy series over braided flexible conduit and fittings system offers cable mechanical protection as well as emi shielding capabilities to help you protect your Motion Control power and data cables in a safe, secure environment. Protecting and shielding CNC and Motion Control Systems cables

Delikon EMI RFI Shielding Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect Motion Control Systems cables, Variable Frequency Drive cables

EMI RFI Shield Termination High Temperature Heavy Series Swivel Connector

Even in environmental extremes like high temperatures and rough conditions, your system needs to perform as efficiently as possible. Delikon Motion Control Systems EMI RFI Shielding Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector are as durable as they are versatile, improving application performance and boosting productivity.
Besides protecting cables from physical damage and premature cable failure, Delikon EMI RFI Shielding Over Braided Flexible Conduit system also keeps electrical magnetic interference EMI from escaping. Delikon EMI RFI Shielding Termination Heavy Series Connector allows the shield to become a low impedance path for high frequency common mode current to flow from the motor back to the inverter. Delikon EMI RFI Shielding Over Braided Flexible Conduit system offers the proper shielding needed to reduce EMI RFI noise and to provide a low impedance signal return path, preventing the common mode or stray voltage that leads to premature cable and or equipment failure

Delikon VFD Cable EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector is ideal for harsh environment VFD applications where a longer lasting cable is desired or where cable flexibility during use or installation is critical. Designed specifically for variable frequency drives cable and to withstand the harsh environment of typical VFD systems. Delikon heavy series over braided flexible conduit system organizes and protects variable frequency drive input and motor wiring, and reduces EMI on nearby equipment. Delikon CNC Machine Cable Protection

Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings for motion control cable protection solutions

Delikon Heavy Series Over Braided Flexible Conduit and Fittings for motion control cable protection solutions Motion control is a key element in many industrial machines. Demands for greater safety functionality are growing, and EMC immunity has become a predominant factor. An increase in the overall number of motors per machine is creating demands for more (and better) cable conduit, as well as innovations that reduce the time required for installation and commissioning. Delikon Flexible conduit and connector products and systems are designed for versatile motion control wiring tasks. Motion Control products include a broad range of servo drives, servo motors and actuators. Our flexible conduit and fittings portfolio extends from pvc coated flexible metal conduit for simple applications to high performance Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings which fit seamlessly into your Industrial Motion Control applications	Effective EMI Shielding Termination

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Conduit Connector protect FLNG and LNG facility automation and control cables.

Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 automation power, signal and data cables

G, PG, Metric, NPT threads	Delikon Heavy Series Metal Fittings and Over Braided Polyamide Convoluted Conduit offer superior EMI protection, environmental, chemical and rodent protection. Delikon Braided Conduit wire protection is used in air, rail and transit applications. Delikon PG and ISO metric thread liquidtight connectors provide a reliable connection for liquidtight flexible metal conduit in industry applications. Delikon PG and ISO metric thread liquidtight connectors are often installed on chemical reactors and bioreactors (for example, PG13.5 thread for sensors) and various other equipment, enclosures, junction boxes.

Delikon Interference Shielding Over Braided Flexible Conduit and Heavy Series Connector

Delikon Interference Shielding Over Braided Flexible Conduit and Heavy Series Connector for metal industry, oil and gas industry, Refineries and Petrochemical industry, automotive industry, Machinery and Plant Construction, battery manufacturing, electronic industry and mining industry automation cable, VFD cable and PLC cable protection Delikon Stainless Steel Wire Over Braided Flexible Conduit and Metal Connector form a conductive covering surrounding a wire or cable, which prohibits any EMI or RFI signal getaway. Cable can be both a source of EMI as well as a receiver. As a source, cables can radiate signals to other cables and even act as an antenna that radiates noise. The cable can also act as a receiver. It receives these signals from other cables and generates EMI through your factory floor. When switching any big loads of power, such as huge transformers, powerful heaters, it is enough to trigger a noticeable EMI amount. These disturbances or feedbacks can also take place when placing a signal cable next to a power cable. Most industries and their factory floors are always making a lot of noise. It is because of unshielded cables that cause this level of interference and is very hazardous for industry workers and laborers. Therefore, installing a shielding flexible sheath will improve your factory’s working conditions. It will also ensure every worker’ s safety. Delikon interference shielding Over Braided Flexible Conduit and Heavy Series Connector provide emi and rfi shielding for electrical wires can make your workplace better and safer. Delikon metal heavy series connectors provide full 360 degrees shield termination and it is a strong reliable fastening system for clamping braid shield and inner conduit securely. The split metal clamping ring together with the sealing nut cone shape interior offers secure locking and positive continuous grounding path when tightened, preventing shielding from being accidentally or inadvertently pulled away from the connector. Electromagnetic disturbances can also harm your device. Working with huge powerful electrical motors and machines become easy with Delikon interference shielding Over Braided Flexible Conduit and Heavy Series Connector. By installing Delikon emi shielding flexible conduit system, you ensure you get the most out of your investments by reducing data loss, signal loss, and power loss

Delikon Kiln, oven, boiler, furnace automation cable protection High Temperature Interference Shielding Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector Delikon is the leading supplier of High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of electrics and automation cables for the metal industry. Steel plants, especially rolling mills as well as processing lines, depend mainly on uninterruptible processes and on the quality of the steel rolled. As a result, cable protection technology plays an essential role. Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector constructed entirely of metals, are ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time . Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector offer mechanical impact and crushing protection as well as protection against hot sparks and slag In addition to the benefit of protection against damage to cable components from cable motion and use, proper shielding provided by Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector is essential to many applications as it can keep out unwanted external interference.

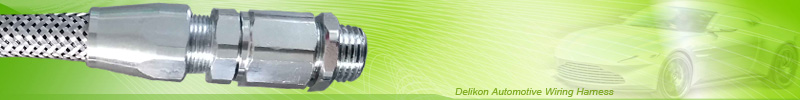

Delikon Flexible Conduit and Fittings for Automotive Wiring Harness
The automotive wiring harness market is driven by the rapid growth of automobile industry owing to various technologically advanced features implemented in vehicles. Automotive wiring harness with Delikon flexible conduit and fittings provides secure and reliable connections, among such gadgets. Delikon flexible conduit system protects the wiring from climatic conditions, abrasion, and dust, avoiding the high cost of replacement of wiring harness due to short circuit. Delikon EMI Shielding Over Braided Flexible Conduit and Connector provide excellent mechanical protection as well as efficient shielding to the Automotive Wires.

Delikon Flexible Conduit and Fittings for Automotive Wiring Harness. Delikon EMI Shielding Over Braided Flexible Conduit and Connector provide excellent mechanical protection as well as efficient shielding to the Automotive Wires.

	Wire Over-Braided Flexible Corrugated Nylon Conduit ( PBF ) flexible Conduit

	For industry electrical wirings, such as PLC control circuits, robotics, braided nylon conduit machine tools, Motion Control, and factory automation braided nylon conduit braided nylon conduit Corrugated Polyamide Conduit Core Stainless Steel wire over-braidedConduit 1/4"~2" trade size EMI shielding Liquid-tight Light weight & very flexible
