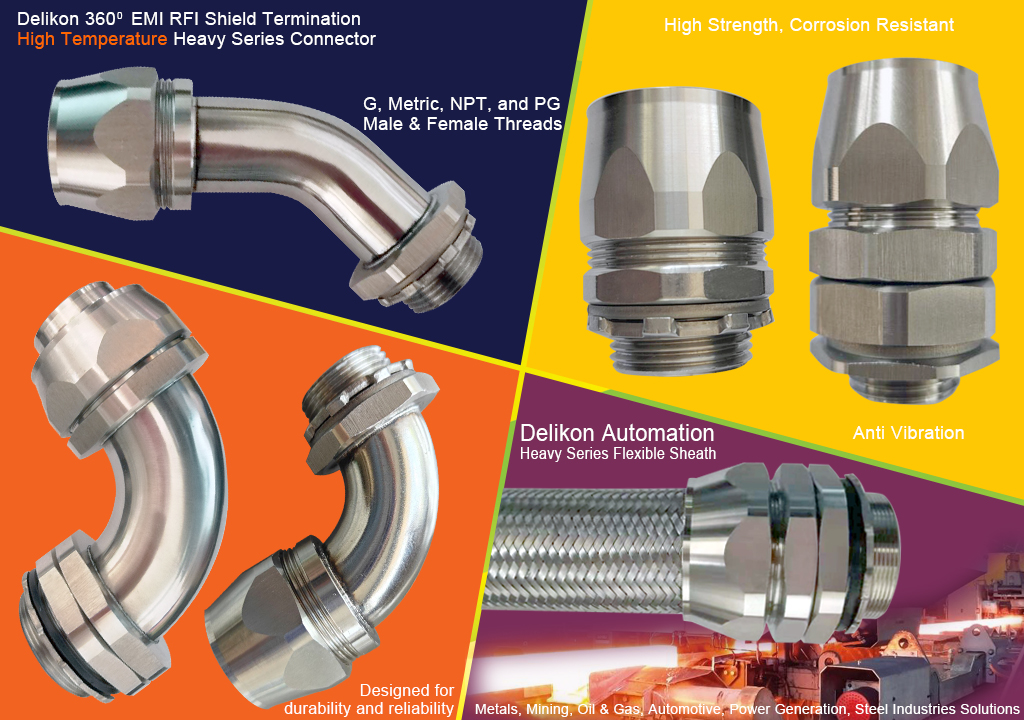

  Delikon Heavy Series High Temperature Connector ( High Temperature )

Braided Flexible Metal Conduit

The ideal wiring system for every automation task, Delikon EMI RFI ESD Shielding High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Motion Control Cables
*1/4"~6" trade size *EMI/RFI shielding *For heavy mechanical stress *High fatigue life
*Resists high temperature and hot metal splashes *All stainless steel constructions

Delikon overbraided flexible conduit systems protect vulnerable cabling on metal machining, welding or heavy plant

Delikon High Temperature Heavy Series Stainless Steel Connector produced from solid stainless steel rods, offers the best combination of strength, oxidation resistance and elevated temperature properties for long service, high temperature industrial applications and has been successfully employed for such purposes even in the steel casting, foundry and forging industry. Delikon has been supplying Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Connector to automotive industry, Petrochemical industry and metal industry,  shielding the automation cables from electrical interference EMI and RFI that could render equipments inoperable. Delikon heavy series flexible EMI shield is also configured to prevent ESD induced current from upsetting or damaging a device.
Delikon Stainless Steel High Temperature Heavy Series Connector
Delikon Stainless Steel High Temperature Heavy Series Connector, all stainless steel constructionDelikon High Temperature Heavy Series Stainless Steel Connector produced from solid stainless steel rods, offers the best combination of strength, oxidation resistance and elevated temperature properties for long service, high temperature industrial applications and has been successfully employed for such purposes even in the steel casting, foundry and forging industry.

Delikon has been supplying Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Connector to automotive industry, Petrochemical industry and metal industry, shielding the automation cables from electrical interference EMI and RFI that could render equipments inoperable. Delikon heavy series flexible EMI shield is also configured to prevent ESD induced current from upsetting or damaging a device.

Delikon
High Temperature Heavy Series Connector has a tapered grounding ring mating to a tapered surface on the rear of the connector backshell, and the grounding ring will clamp tightly around the flexible conduit stainless steel braiding when the backshell nut is tightened Together with the connector ferrule, physically connecting the full circumference of the braided conduit shield to the enclosure, terminating shielding on the wiring systems and providing a low impedance continous EMC grounding.
DELIKON Automation industry 4.0 wiring Delikon Heavy Series Over Braided Flexible Conduit, Fittings protect Industry 4.0 power, signal and data cables industry 4.0 wiring Delikon Heavy Series Over Braided Flexible conduit, Fittings protect automotive industry automation equipment cables

YABS-SS ( Straight Stainless Steel High Temperature Connector )   Trade Size: 1/4" to 6"

Model Size ID 0 degree
Fixed Type
Model Size ID
YABS-02B-SS 1/4" 8.0 YABS-20B-SS 2" 48.8
YABS-03B-SS 3/8" 10.7 YABS-24B-SS 2-1/2" 59.4
YABS-04B-SS 1/2" 14.3 YABS-30B-SS 3" 75.8
YABS-06B-SS 3/4" 19.3 YABS-40B-SS 4" 97.6
YABS-10B-SS 1" 24.4 YABS-50B-SS 5" 123.0
YABS-12B-SS 1-1/4" 33.4 YABS-60B-SS 6" 137.0
YABS-14B-SS 1-1/2" 38.0


YABSR-SS ( Straight Swivel Stainless Steel High Temperature Connector )   Trade Size: 1/4" to 4"

Model Size ID 0 degree
Swivel Type
Model Size ID
YABSR-02B-SS 1/4" 8.0 YABSR-20B-SS 2" 48.8
YABSR-03B-SS 3/8" 10.7 YABSR-24B-SS 2-1/2" 59.4
YABSR-04B-SS 1/2" 14.3 YABSR-30B-SS 3" 75.8
YABSR-06B-SS 3/4" 19.3 YABSR-40B-SS 4" 97.6
YABSR-10B-SS 1" 24.4
YABSR-12B-SS 1-1/4" 33.4
YABSR-14B-SS 1-1/2" 38.0


YALS-SS ( 90 Degrees Stainless Steel High Temperature Connector )   Trade Size: 1/4" to 4"

Model Size ID 90 degree
Fixed Type
Model Size ID
YALS-02B-SS 1/4" 8.0 YALS-20B-SS 2" 48.8
YALS-03B-SS 3/8" 10.7 YALS-24B-SS 2-1/2" 59.4
YALS-04B-SS 1/2" 14.3 YALS-30B-SS 3" 75.8
YALS-06B-SS 3/4" 19.3 YALS-40B-SS 4" 97.6
YALS-10B-SS 1" 24.4
YALS-12B-SS 1-1/4" 33.4
YALS-14B-SS 1-1/2" 38.0


YALSR-SS ( 90 Degrees Stainless Steel High Temperature Connector )   Trade Size: 1/4" to 4"

Model Size ID 90 degree
Swivel Type
Model Size ID
YALSR-02B-SS 1/4" 8.0 YALSR-20B-SS 2" 48.8
YALSR-03B-SS 3/8" 10.7 YALSR-24B-SS 2-1/2" 59.4
YALSR-04B-SS 1/2" 14.3 YALSR-30B-SS 3" 75.8
YALSR-06B-SS 3/4" 19.3 YALSR-40B-SS 4" 97.6
YALSR-10B-SS 1" 24.4
YALSR-12B-SS 1-1/4" 33.4
YALSR-14B-SS 1-1/2" 38.0
All Hight Temperature Connectors are available with G, ISO228-1, Metric, PF; NPT or PG threads. Male or Female threads.

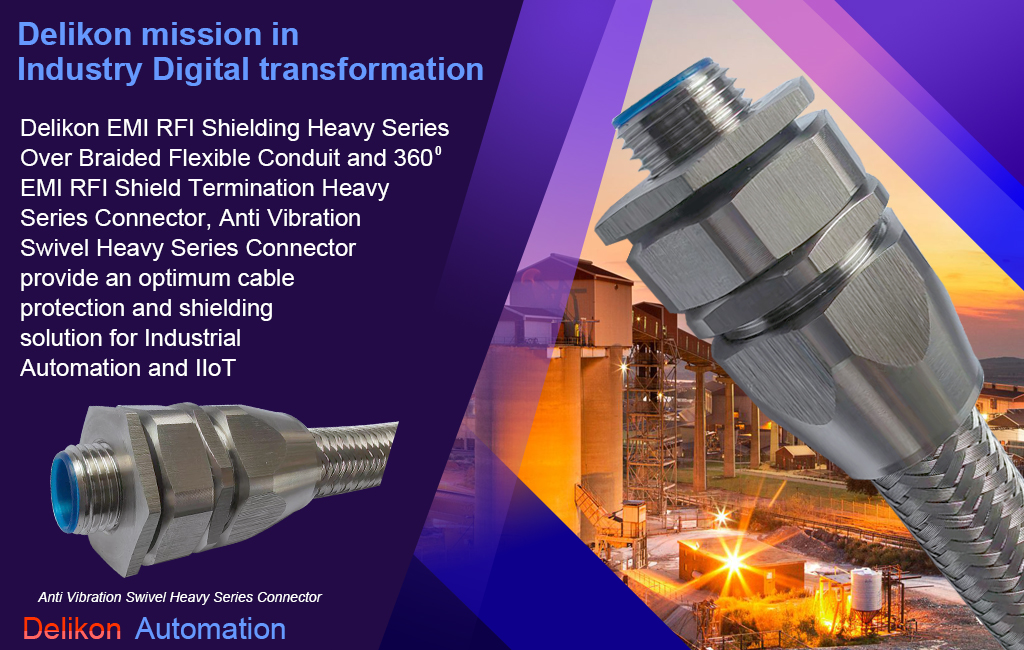

Swivel Connector:
The external thread swivels about the main body. It can be used with threaded entries or knockout secured with a locknut. Most suitable for installations requiring motion, vibration and bending.
Delikon flexible conduit
Download the catalog page for DELIKON Heavy Series Stainless Steel High Temperature Connector Download the catalog page for DELIKON Heavy Series Stainless Steel High Temperature Connector :
YABS-SS (fixed straight connector), YABSR-SS (swivel straight connector),
YALS-SS (fixed 90 degrees connector), YALS
R-SS (swivel 90 degrees connector)

Delikon High Temperature EMI Shielding Heavy Series Over Braided Flexible Stainless Steel Conduit and High Temperature Heavy Series Stainless Steel Connector protect Laser profile gauge automation cabinets and control room cable

Delikon High Temperature EMI Shielding Heavy Series Over Braided Flexible Stainless Steel Conduit and High Temperature Heavy Series Stainless Steel Connector protect Laser profile gauge automation cabinets and control room cable
Delikon High Temperature EMI Shielding Heavy Series Over Braided Flexible Stainless Steel Conduit and High Temperature Heavy Series Stainless Steel Connector protect Laser profile gauge automation cabinets and control room cable

Delikon High Temperature Heavy Series Stainless Steel ConnectorDelikon High Temperature EMI Shielding Heavy Series Over Braided Flexible Stainless Steel Conduit is constructed of stainless strip, containing a fiberglass cord packing which pulls the convolutions closer together for greater mechanical strength, while the outer stainless steel braiding provide physical protection from molten splash, and welding sparks as well as electromagnetic shielding for sensitive cables. Delikon high temperature heavy series stainless steel connector is one stainless steel body, all stainless steel construction for reliable applications where high temperature oxidation resistance is necessary, and in other applications where high temperature strength is required. The all stainless steel heavy duty construction which is wet corrosion resistance is also highly beneficial to Delikon high temperature stainless steel connector strength and resistance to scaling at elevated temperatures.

The Delikon over braided flexible conduit metallic screen completely surrounds the sensitive and transmitting automation power and control cables. The Delikon over braided flexible conduit system absorbs the transmitted signals, and causes a current within the body of the screen. This current is absorbed by the ground connection through the heavy series metal connector.

Delikon High Temperature EMI Shielding Heavy Series Over Braided Flexible and High Temperature Heavy Series Stainless Steel Connector are available in different configurations and sizes for protection of power, control or sensor cables of blast furnaces, billet casters, long products rolling mills, cold products rolling mill and strip processing lines in metal industry, as well as of Weld robotic cells, and body shop in the automotive industry.

Laser profile gauge allows the complete in-line dimensional control and surface defect inspection of bars and sections during rolling. These devices are installed in more extreme industry conditions. Delikon High Temperature EMI Shielding Heavy Series Over Braided Flexible Conduit and Connector provide the optimum mechanical protection as well as noise screening of the Laser profile gauge automation cabinets and control room wirings, and cable of operator supervision station, display, as well as traffic light cables, thus ensuring improved production performance and quality for long product producers.
Electrical flexible conduit
Download the catalog page for DELIKON SC Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit Download the catalog page for DELIKON SC Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit in PDF File format. Delikon OIL REFINERIES PETROCHEMICAL industry burner combustion equipment automation and flame scanner wiring High Temperature EMI RFI ESD Shielding Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit

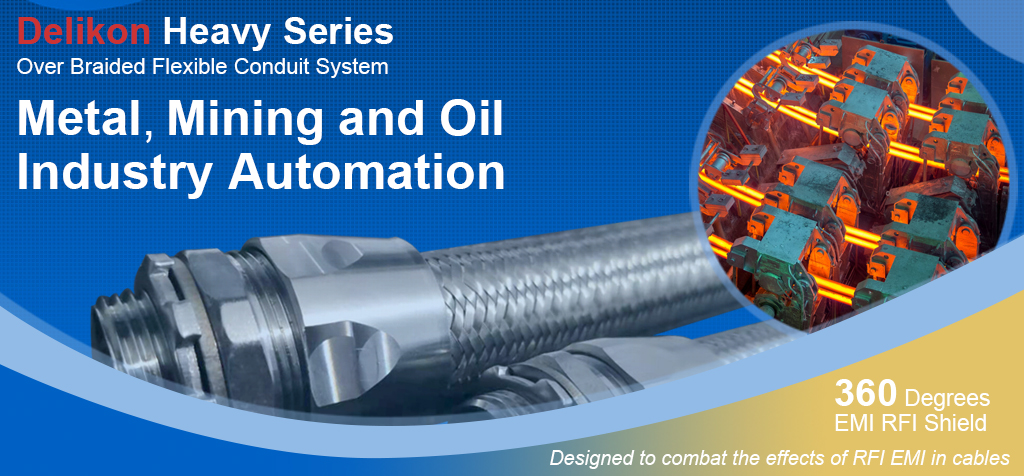

Heavy Series Over braided flexible conduit and Connector for industry automation cable protection

Delikon Metal Industry Automation Wiring High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector. Delikon is the leading supplier of High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of electrics and automation cables for the metal industry. Steel plants, especially rolling mills as well as processing lines, depend mainly on uninterruptible processes and on the quality of the steel rolled. As a result, cable protection technology plays an essential role. Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector constructed entirely of metals, are ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time . Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector offer mechanical impact and crushing protection as well as protection against hot sparks and slag

Delikon Metal Industry Automation Wiring High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector

Delikon is the leading supplier of
High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of electrics and automation cables for the metal industry. Steel plants, especially rolling mills as well as processing lines, depend mainly on uninterruptible processes and on the quality of the steel rolled. As a result, cable protection technology plays an essential role. Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector constructed entirely of metals, are ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time . Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector offer mechanical impact and crushing protection as well as protection against hot sparks and slag

Delikon EMI Shielding High Temperature Heavy Series Over Braided Flexible Metal ConduitIn addition to the benefit of protection against damage to cable components from cable motion and use, proper shielding provided by Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector is essential to many applications as it can keep out unwanted external interference. In many applications, electromagnetic interference EMI is a threat to signal integrity. Shield quality is of particular importance in small signal or high frequency applications where a slight variation can have significant impact. All electrical cable will radiate energy to, and pick up energy from, its surroundings. As such, shielding of Delikon flexible conduit system can also be used to contain the electromagnetic energy radiated by a cable, which in turn can protect nearby sensitive components.

The Combinations of metallic foil shield (inner conduit) and braid shield (over braiding) of this high temperature flexible conduit system maximizes shielding effectiveness. And the high temperature connector ensures the shield will be grounded properly.

Delikon High Temperature Heavy Series Stainless Steel Connector constructed entirely of stainless steel, is ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time.
delikon.com
Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit in PDF File format.
Delikon Over Braided Heavy Series Flexible Sheath with External Stainless Steel Braiding for protection against sparks and slag, Heavy Series Over Braided Flexible Conduit for steel mill automation wiring

Delikon EMI RFI ESD Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Motion Control Cables

Delikon steel mill electrics and automation wiring YF-704 waterproof HEAVY SERIES FLEXIBLE SHEATH ALUMINUM FOIL MILL Automation wiring steel mill wiring ship engine control room wiring ship Instrumentation wiring YF-704 emi rfi esd shielding Heavy series over Braided Metal Flexible Conduit Heavy Series Flexible Conduit  Connector for steel mill electric cable, heavy series connector Leading the way through process automation, Delikon EMI RFI ESD Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect Automotive Manufacturing, Metal Industry and Petrochemical Industry automation and motion control cableRelated automation product: Delikon YF-704 steel mill automation wiring waterproof braided HEAVY SERIES FLEXIBLE SHEATH gas industry automation wiring petrochemical plant cable protection ship automation and control wiring cold mill automation wiring YF-704 waterproof emi rfi esd shielding heavy series waterproof Over Braided Flexible Metal Conduit
Modern automotive production, metal processing or Petrochemical Industry is inconceivable without efficient process automation, while efficient process automation relies on reliable power and data cable protection system. Delikon always has the right answer in this area thanks to state of the art Heavy Series Over Braided Flexible Conduit and Heavy Series Connector. That’s why you will find our Heavy Series Over Braided Flexible Conduit and Connector solutions at every corner of the automotive production line: in conveyor and process technology and in shell construction, welding painting and final assembly. Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, built for industrial applications, can withstand mechanical load and provide EMI RFI ESD Shielding while remaining highly reliable.
Delikon steel mill electrics and automation wiring
YF-704 waterproof HEAVY SERIES FLEXIBLE SHEATH.
Ship engine control room wiring ship Instrumentation wiring
YF-704 Emi Rfi Esd Shielding Heavy Series Over Braided Metal Flexible Conduit
Delikon Automation
Delikon Flexible Conduit and Fittings For Offshore, Marine, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. And Delikon High Temperature Heavy Series Over Braided Flexible Conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globeDelikon Flexible Conduit and Fittings For Offshore, Marine, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for offshore platforms
